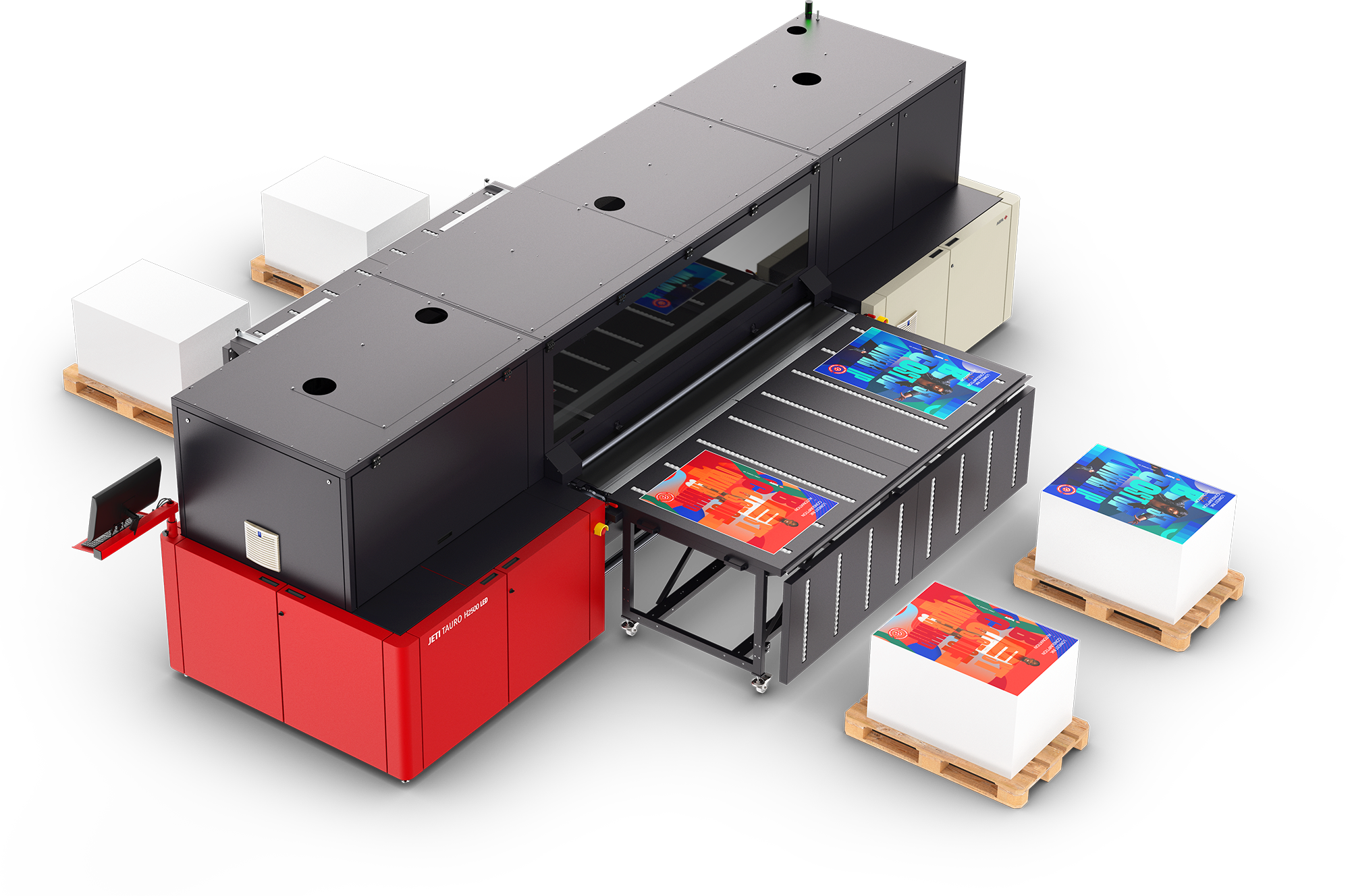

Jeti Tauro H2500
The high-end hybrid Tauro H2500 utilizes UV LED curing to deliver stunning prints in six colors plus white or primer on both flexible and rigid materials.
Download brochure Apply consultation
- Hybrid
- Up to 390 m²/h – 4198 ft²/h
- Up to 254 cm – 100 in
- CMYKcm or CMYKck + white & primer
Boasting a printing speed of up to 390 m²/h, it has the power to enhance your productivity.
The Tauro H2500 is a true hybrid printer, ruggedly built to easily handle extreme workloads, 24/7 printing, and a wide variety of rigid and flexible substrates. It is suited for substrate widths of up to 2.54 m and rigid media up to 4 m, offering you countless options to create eye-catching prints.Driven by Asanti workflow technology and optimized to work with Agfa’s high-pigmented UV LED inks, the Tauro H2500 LED takes on any challenge. Expect only high-quality vivid prints that stand out every time!
Application:
drag
Benefits
- Hybrid printer with integrated light roll-to-roll system
- Manual and continuous feeding of rigid and flexible media
- Eco-friendly UV LED print technology saves costs and expands the range of substrates
- Outstanding print quality in six colors plus white or white and primer
- Gloss mode for an even larger color gamut and enhanced spot color reproduction without loss of image quality or extra ink usage
- Powered by our smart Asanti workflow software
In detail
Incredible productivity
With 32 fast-firing inkjet print heads, each with four nozzle rows for two colors per head, this high-end hybrid printer offers outstanding productivity. Add to that Agfa’s UV-curable inks and dedicated waveform that is designed to work in perfect harmony with the print heads, and you have the perfect combination of productivity and superior print quality.
Extremely vivid prints
Whether you’re creating indoor or outdoor applications on rigid or flexible media, the Tauro H2500 always produces high-quality prints in six colors (CMYKcm or CMYKck), plus white or primer. The 32 print heads – 24 for color, and 8 for pre- and post-white, sandwich white and/or primer printing – and 7-pl droplets produce stunning, detailed images and razor-sharp texts in as small as 4-point type.
UV LED print technology
Equipped with UV LED lamps for the curing process, the Tauro H2500 LED offers major advantages in terms of performance, costs, maintenance, the environment, and the generation of extra business.
Versatile and efficient
The Tauro H2500 LED comes standard with manual media loading tables, perfect for smaller runs. Boards can be loaded in one continuous flow for maximum convenience, efficiency, and productivity. The printer also features a built-in light roll-to-roll for occasional, single-roll printing. The roll-to-sheet setting enables fast throughput with hardly any material waste.
Technical data
| Models | |
Four configurations, depending on the applications that you run.
Tauro H2500 6C – 6 colors (24 heads) Tauro H2500 6C W4 – 6 colors and white (28 heads) Tauro H2500 6C W8 – 6 colors and white (32 heads) Tauro H2500 6C W4 P2 – 6 colors, white and primer (30 heads) | |
| Media & printing specifications | |
| Sheets & boards | |
| Maximum width | 2.54 m (100” or 8.33 ft) |
| Maximum length | 4.0 m (157.5” or 13.1 ft) |
| Minimum size | DIN A3, 29.7 x 42 cm (11.7 x 16.1”) |
| Thickness | Min. 0.2 cm (80 mil) – max. 5 cm (1.97”) (media-dependent) |
| Maximum weight | 10 kg/m² with a maximum of 60 kg evenly distributed over the table
On the ABF: maximum weight 10 kg/m² with a total of 43 kg Sheets: from 200 gr/m² and up |
| Borderless printing | Yes. Also in combination with parallel board printing. |
| Roll-to roll | |
| Integrated RTR | |
| Maximum width | 2.54 m (100” = 8.33 ft) |
| Minimum width | 33 cm (13” = 1.08 ft) |
| Maximum length | Full roll length (depends on total roll thickness, diameter and weight) |
| Thickness | Min. 0.2 mm (0.008” = 8 mil) – max. 3.2 mm (0.125” = 118 mil) |
Maximum weight
(mounted at the center of the shaft) | 100 kg |
| Maximum roll outside diameter | 360 mm (14.0”) |
| Roll mounting | Pneumatic shafts for 76.2 mm (3”) (standard) |
| Borderless printing | Yes, with protection paper or tape on the belt |
| Double-sided printing | No provisions available for registration in double-sided printing |
| Productivity (for ABF dependent on size and number of boards) | |
| Up to 390 m²/h (4198 ft²/h) | |
| Media | |
| Media types | Rigid as well as flexible media (check with your local Agfa representative for a detailed list) |
| Print heads & inks | |
| Print heads | Piezoelectric Ricoh MH |
| Inks | CMYKcm or CMYKck + white or white and primer |
| Image & text quality | |
| Image quality | Resolution up to 1200 dpi |
| Text quality | 4 point |
| Engine dimensions & weight | |
| Printer dimensions (H x W x L) | 2.0 m x 1.92 m x 6.83 m (6.56 ft x 6.29 ft x 22.4 ft) |
| Flatbed printer with roll-to-roll unit weight | 4100 kg (9039 lb) |
| Room conditions | |
| Temperature | 16-25°C |
| Relative humidity | 40-60% |
| Electricity & compressed air | |
| Electricity | Engine: 400-480 VAC, 3-phase, 50/60 Hz, 63A
ABF: 400-480 VAC, 3-phase, 50/60 Hz, 32A |
| Compressed air | |
| System integration RIP/workflow software | |
| Asanti, StoreFront, PrintSphere, third-party RIPs | |
