Avinci CX3200
Dye sublimation roll-to-roll printer that prints on a wide range of polyester-based media
Download brochure Apply consultation
- Dedicated dye sublimation soft signage printer
- Up to 250 m²/h – 2691 ft²/h
- Up to 320 cm – 126 in
- CMYK
Agfa’s dedicated dye sublimation roll-to-roll printer will enable you to create vibrant high-quality prints on polyester-based fabrics up to 3.2 m wide, including a broad range of in- and outdoor soft signage applications, as well as interior decoration.
The Avinci CX3200 is a highly reliable and convenient soft signage printer that is able to print directly to fabrics, as well as onto transfer paper. It uses an off-line calender unit to ensure perfect fixation.
Application:
drag
Benefits
- High productivity and a robust design for reliable printing at all times
- Vibrant prints and a wide color gamut
- Excellent print quality and fine detail rendering
- Extensive applications scope
- Low ink consumption
- Convenient operations and a fast changeover between jobs
- Complete and integrated solution: printer, inks, workflow software, worldwide service and applications support
Details

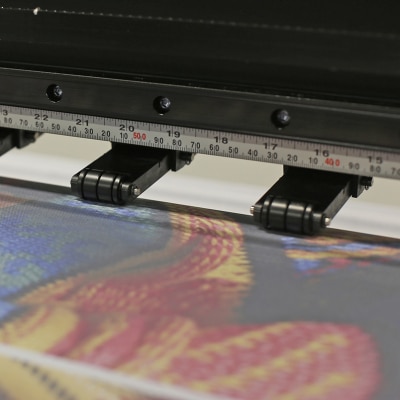

Direct & transfer printing – for the widest application scope
- Avinci can print a wide variety of polyester-based soft signage applications such as backlit point-of-sales displays, indoor wall graphics, outdoor advertising, block-outs, backdrops, flags, or retail store décor elements. In addition, it can also be used to print polyester-based sportswear or fashion garments. You name it, Avinci is up to the challenge.
- Being able to print directly to fabric is easy and ideal for fast handling and for special applications such as flags, where print-though is needed.
- Transfer paper allows for super sharp prints, eliminates any set-off, and limits media waste to a minimum. In addition, it extends the application scope to sportswear and fashion garments, as well as home décor prints on non-coated polyester fabrics.
Vivid colors, high performance
- The Avinci CX3200 boasts a rich color gamut and delivers deep black, perfect solids, accurate spot color mapping and smooth tonal rendering that is particularly noticeable in skin tones. Through the process of dye sublimation, your soft signage prints will look simply amazing.

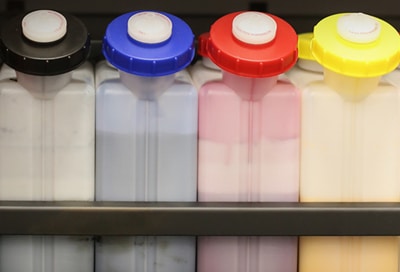

- The Avinci inks are characterized by their flexibility, image longevity and outdoor resistance. They offer stable jetting performance and deliver the same high-quality results, batch after batch.
- An off-line calender unit fixes the color deeply into the structure of the polyester-based fabrics while evaporating the carrier fluid.
Safe for people and environment
- The Avinci 110 inks obtained the OEKO-TEX® ECO PASSPORT, an independent certification system for chemicals, colorants, and auxiliaries used in the textile and leather industry. The ECO PASSPORT states that the Avinci 110 inks can be used to produce human-ecological optimized textiles, in other words: that they – when combined with the right substrate and printing method – will have no harmful effect on human and environmental health.
- The ECO PASSPORT also indicates that the prints made with the Avinci 110 inks can obtain the OEKO-TEX® STANDARD 100 label, one of the world’s best-known labels for textiles. This label states that every component of an article, i.e. every thread, button, and other accessories, has been tested for harmful substances and that the article, therefore, is harmless for human health, and can be used for skin contact, e.g. for blankets, sportswear.
Low ink consumption saves money
- Avinci produces excellent results with a minimum of jetted ink. This low ink consumption is based on Agfa’s renowned Thin Ink Layer technology: a smart combination of particular ink characteristics and our Asanti workflow software algorithms that tune the ink quantities perfectly to the required image quality mode.
Technical data
| Media & printing specifications | |
| Flexible media | |
| Max print width | Single roll = 3.20 m (126.0”) |
| Max roll width | Single roll = 3.26 m (128.5”) |
| Maximum length | >100 m length (also depends on the thickness and total roll weight) |
| Max media thickness | Max. 3 mm (0.12”) |
| Maximum weight | Single roll in full width: 100 kg (220 lbs) |
| Maximum roll outside diameter | 300 mm (11.8”) |
| Roll mounting | Pneumatic shafts for standard core diameter of 76.2 mm (3”) |
| Media skew | Max. 2 mm on 10 m printing |
| Borderless printing | Single roll = up to 3.2 m (126”) |
| Media transportation | Roll-to-roll using pneumatic shafts, spreader and pinch rollers, dancer bars and print plate with ink collecting gutter or vacuum for transfer paper |
| Productivity | |
Open fabrics – flags, indoor & outdoor
Direct printing 12 pl | 110 to 205 m2/h (1184 to 2207 ft2/h) 105 to 185 m2/h (1130 to 1991 ft2/h) |
Closed fabrics – displays
Direct printing | 90 to 250 m2/h (969 to 2691 ft2/h) 90 to 156 m2/h (969 to 1679 ft2/h) |
Closed fabric with diffusion layer – backlit displays
Direct printing | 55 to 90 m2/h (592 to 969 ft2/h) 90 m2/h (969 ft2/h) |
| Media | |
| Media types | Polyester fabrics (80% minimum content), or transfer paper used to create banners, indoor wall graphics, shop decoration, outdoor advertising, light boxes, trade show displays, and flags |
| Print heads & inks | |
| Print heads | Kyocera KJ4B-0300 |
| Ink | CMYK |
| Ink system maintenance | Automatic |
| Image & text quality | |
| Image quality | Resolution up to 600 x 1200 dpi in high definition |
| Engine dimensions & weight | |
| Printer dimensions & weight (W x D x H) | Uncrated: 5240 mm x 1200 mm x 1700 mm (207” x 47.2” x 66.9”)
Crated: 6490 mm x 1840 mm x 2160 mm (256” x 73” x 85”) |
| Printer weight | Uncrated: 1280 kg (2822 lbs)
Crated: 2100 kg (4630 lbs) |
| Room conditions | |
| Temperature | 20-25°C (ideal: 22°C) |
| Relative humidity | 40-80% (ideal: 50%) |
| Cleanliness | The room must be clean and free from dust, to avoid pollution of the printheads and the media. |
| Air conditioning | The printing machine can be installed in a room with air conditioning. |
| Electricity & compressed air | |
| Electricity | Single phase: 230 VAC L+N+G, (50/60 Hz) 32AThree phases: 400 VAC 3Y+N+G, (50/60 Hz) 17A |
| Compressed air | 6 bar (~ 6 kg/cm²) – 200 l/min
Dry and oil-free, (Class 1 in accordance with ISO 8573-1 2010) |
| System integration RIP/workflow software | |
| Asanti, PrintSphere, third-party rips |
